CKL Waterjet 3000
Touchless Automatic Car Wash Machine
Main Product Functions

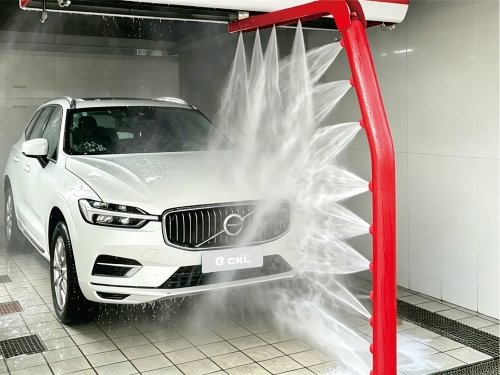

360High Pressure Rinse
18.5kW Plunger Pump Stable output pressure up to 10 MPa Strengthened rinse for car front & rear sections
Focus Wash Zones
Focus on front and rear vehicle sections
Repeated high-pressure jet cycles Deep cleaning for heavily soiled areas

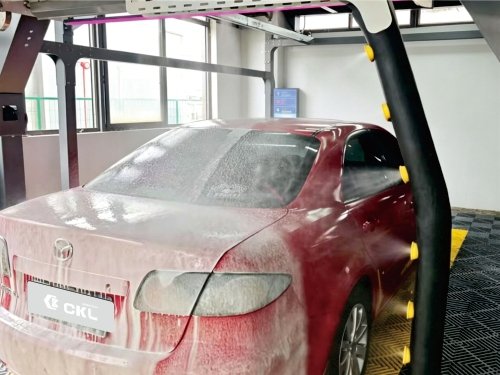

pre-soak
Even Pre-Soak Spraying
Uniform pre-soak breaks surface grime
Dwell time dissolves stubborn dirt fully

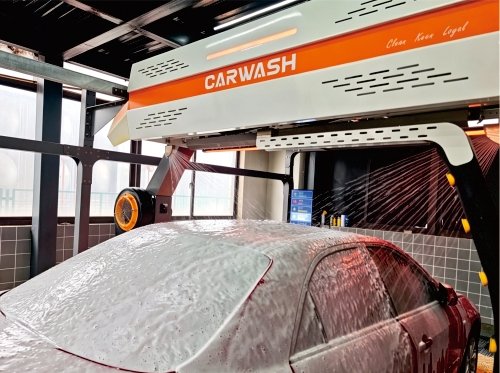

Magic Foam
Stainless Steel Foam Nozzles
Custom nozzles deliver full fan foam Uniform coating with zero blind spots

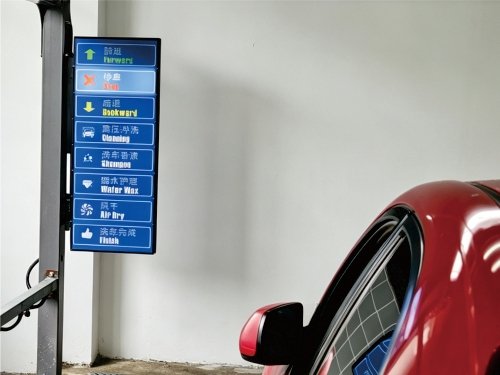

Parking Guidance
LED Guidance Display
Voice parking & wash status indicator Simple, intuitive user operation
Overhead Air Dryer
Aerodynamic Air Dryer
4 built-in 5.5kW high-power blowers 90% efficient, low noise & anti-rust
Core Standard Configurations
Equipped on all models, no downgrade
Featuring a self-developed IoT mainboard
supports 4G/WiFi. It connects to the i-com 2.0 cloud system for instant remote troubleshooting, upgrades and maintenance, ensuring intelligent and stable operation.
Innovative After-sales Service Experience
The i-com 2.0 cloud platform enables precise remote diagnosis. Unique component serial numbers support fast troubleshooting and visual maintenance for stable operation.
Modular Structure for Long Durability
Future-proof: The car wash equipment adopts a professional modular structure for easy maintenance and flexible upgrades.
All-weather Waterproof & Anti-corrosion Body
Future-proof: CKL carwash: galvanized & powder-coated, corrosion-resistant, long lifespan，Durable whole unit
Global Payment & Cash System Access
Global Payment: Intelligent car wash equipment supports free TCP, API … docking for mainstream overseas payment systems.
24-hour Full Unattended Operation
High Efficiency: touchless car washer supports 24h full-automatic unattended washing for commercial use.
Standard Global Parts & Low Maintenance
Low Maintenance: Commercial brush car wash machine adopts global standard parts to simplify upkeep and cut operational costs.
Multilingual Intelligent Touch Control Panel
Smart Control: automatic touchless car wash machine adopts multilingual touch panel for full control and real-time monitoring.
Sturdy Structure & Low Maintenance
features a heavy-duty floor-standing frame and trolley design. Durable, easy to install and maintain, it effectively cuts long-term unmanned operation costs.
Full Vehicle Compatibility
This contact-free car wash equipment fits all mainstream vehicles including sedans, hatchbacks and SUVs, suitable for individual and chain auto service stores.
Product Details
360High Pressure Rinse
pre-soak
Magic Foam
Overhead Air Dryer

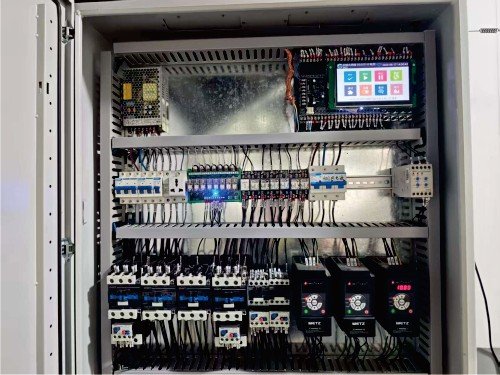

Electric Control Cabinet
Pump Cabinet
Water Wax Coating

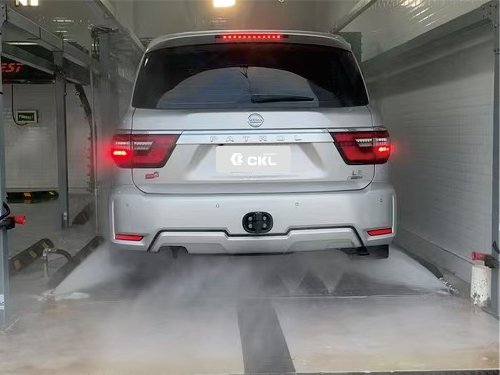

Chassis Wheel Wash
Parking Guidance
Function Configuration
| Specifications | CKL Waterjet 3000 |
|---|---|

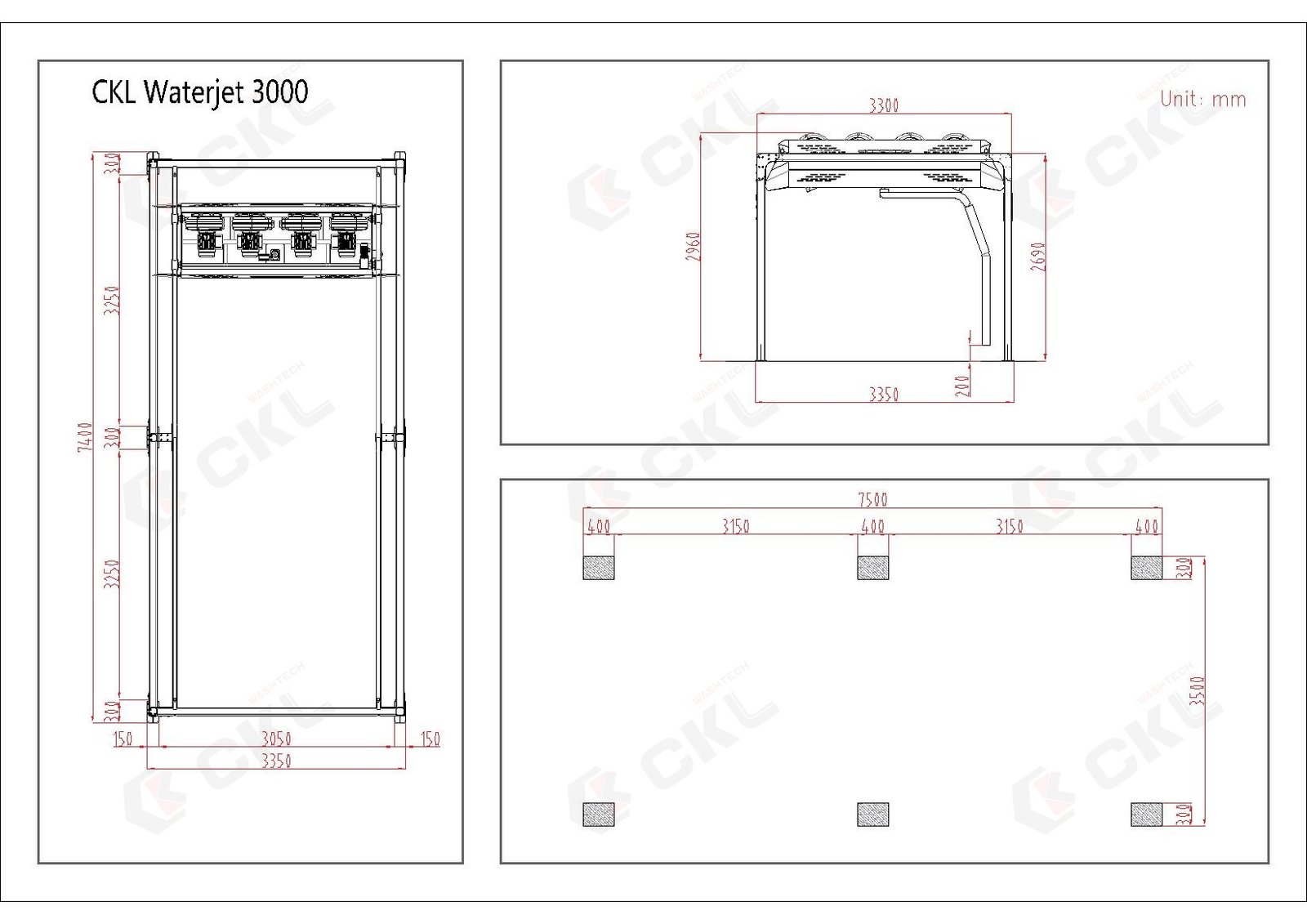

| Installation size: | L7.5m*W3.5m*H3.2m |
| Max Vehicle Size | L5.6m*W2.6m*H2.05m |
| Pump Types | High Pressure Plunger Pump |
| Pump Power | 18.5kW |
| Flushing pressure | 8-10 MPa |
| Air Dryer Power | 22kW |
| Power requirements: | 380V/220V (50/60Hz) 23kW |
| Electricity consumption | 0.8-1.2kWh/car |
| Water consumption | 80-120 liters/car |
| Washing Time | 3-8min/car |
| Total packaging weight | 8CBM, 1600kg |
| Warranty | 3 year |
| Functions: | |
| Chassis Wheel Wash | ● |
| Pre-soak | ● |
| 360High Pressure Rinse | ● |
| Pre-Soak Rinse | ● |
| Magic Foam | ● |
| Water Wax Coating | ● |
| Fixed Top Dry | ● |
| Configuration: | |
| Automatic digital pump box | ● |
| Rail-mounted frame | ● |
| Vehicle Parking Guidance System | ● |
| 7-inch touchscreen | ● |
| Equipment IoT Function | ● |
| Remote Fault Diagnosis | ● |
| Real-time Online Troubleshooting | ● |
| Intelligent anti-collision system | ● |
| Safety alarm system | ● |
| Automatic standby function | ● |
| Car wash quantity report statistics | ● |
| Fault self-diagnosis system | ● |
Worried about car wash machine maintenance?
CKL Carwash solves all maintenance issues.
Your Pain Point
Inexperienced staff fail to identify faults accurately, leading to miscommunication and extended downtime.
My Advantage
Our smart board automatically collects and syncs full real-time car wash data to the iCOM2.0 cloud for intelligent remote monitoring.
Fault Guidance
Our support team analyzes background data to pinpoint faults and deliver customized visual troubleshooting guides.
Video Support
Professional teams provide 1-on-1 video guidance for fast fault fixes and operation recovery.
How to select the right CKL CARWASH touchless car wash machine?
| SERIES | Waterjet | |||||
|---|---|---|---|---|---|---|
| function | 1000 | 1000+ | 3000 | 3600 | 3600dual | DF360 |
| HP Pressure | ★★★ | ★★★★ | ★★★★★ | ★★★★★ | ★★★★ | ★★★★★ |
| Pump Motor HP | 7.5kW | 15kW | 18.5kW | 18.5kW | 22kW | 18.5kW |
| Drying Effect | － | ★★★ | ★★★★ | ★★★★★ | ★★★★★ | ★★★★★ |
| Drying Total Power | － | 16kW | 22kW | 33kW | 33kW | 33kW |
| Fixed Top Dry | － | ● | ● | ● | ● | ● |
| Fixed Side Dry | － | － | － | ● | ● | ● |
| Contour Air DRY | － | － | － | － | － | Optional |
| Chassis Wheel Wash | － | ● | ● | ● | ● | Optional |
| pre-soak | － | ● | ● | ● | ● | ● |
| Magic Foam | ● | ● | ● | ● | ● | ● |
| 3-Color Foam Spray | － | － | － | － | Optional | Optional |
| Lava Waterfall Foam | － | － | － | ● | ● | Optional |
| Water Wax Coating | － | ● | ● | ● | ● | ● |
| 360High Pressure Rinse | ● | ● | ● | ● | ● | － |
| Dual Wash Arms | － | － | － | － | ● | － |
| Contour HP Water | － | － | － | － | － | ● |
| Parking Guidance | ● | ● | ● | ● | ● | ● |
| Front-Rear Reinforced HP | － | － | ● | ● | ● | ● |
| Separate Fluid Lines | － | － | － | ● | ● | ● |
| Custom Appearance | ● | ● | ● | ● | ● | ● |
FAQ for waterjet 3000
1. How many years of warranty do you offer for CKL Carwash Waterjet 3000?
We providea 3-year warranty including all spare parts for CKL CARWASH .
2. What functions does the machine have?
Chassis cleaning/high pressure washing/magic foam/common foam/water-waxing/air drying/Lava/Triple Foam, It depends on the model variations.
For the detailed functions you can download the brochure of every model in our website.

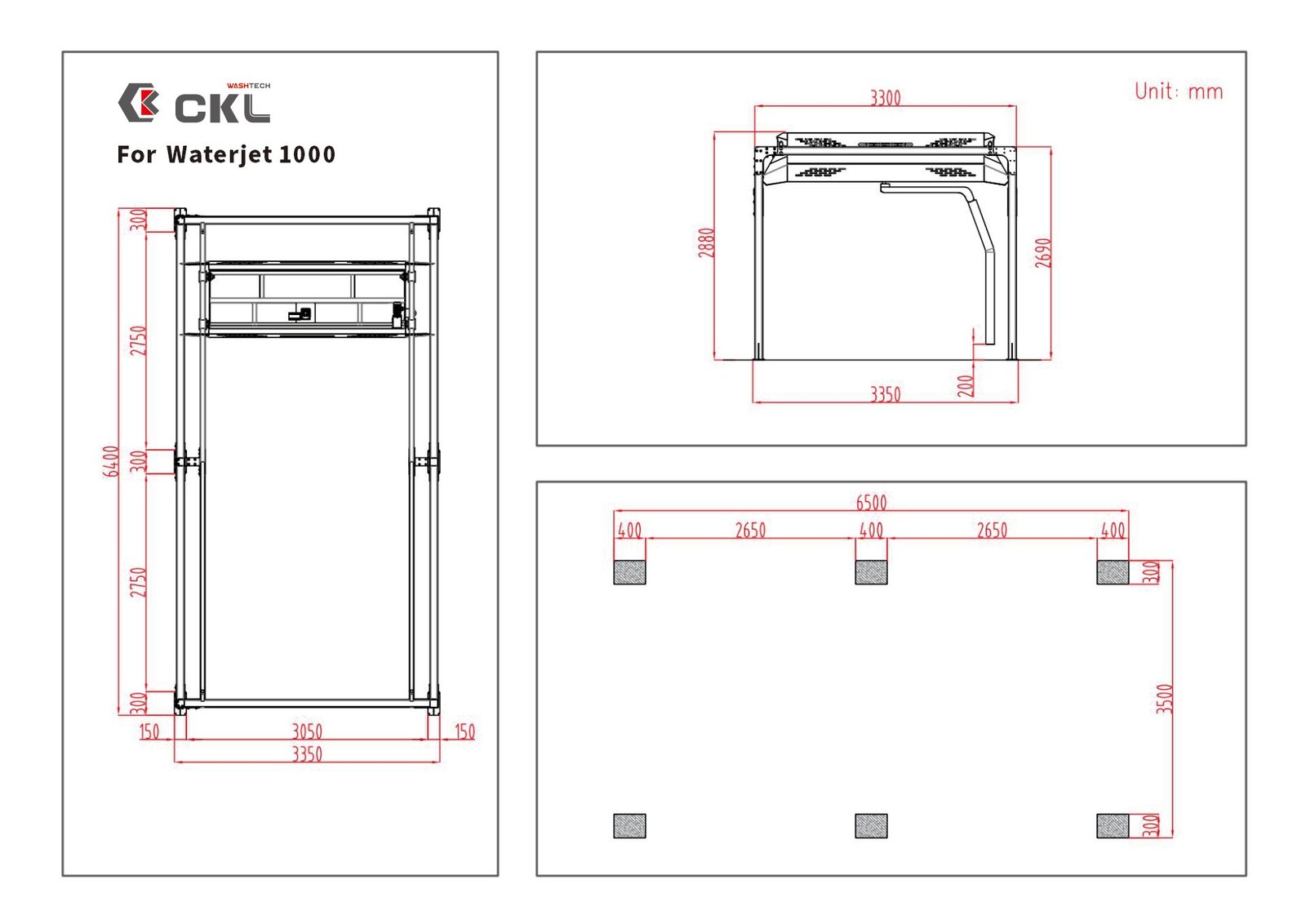

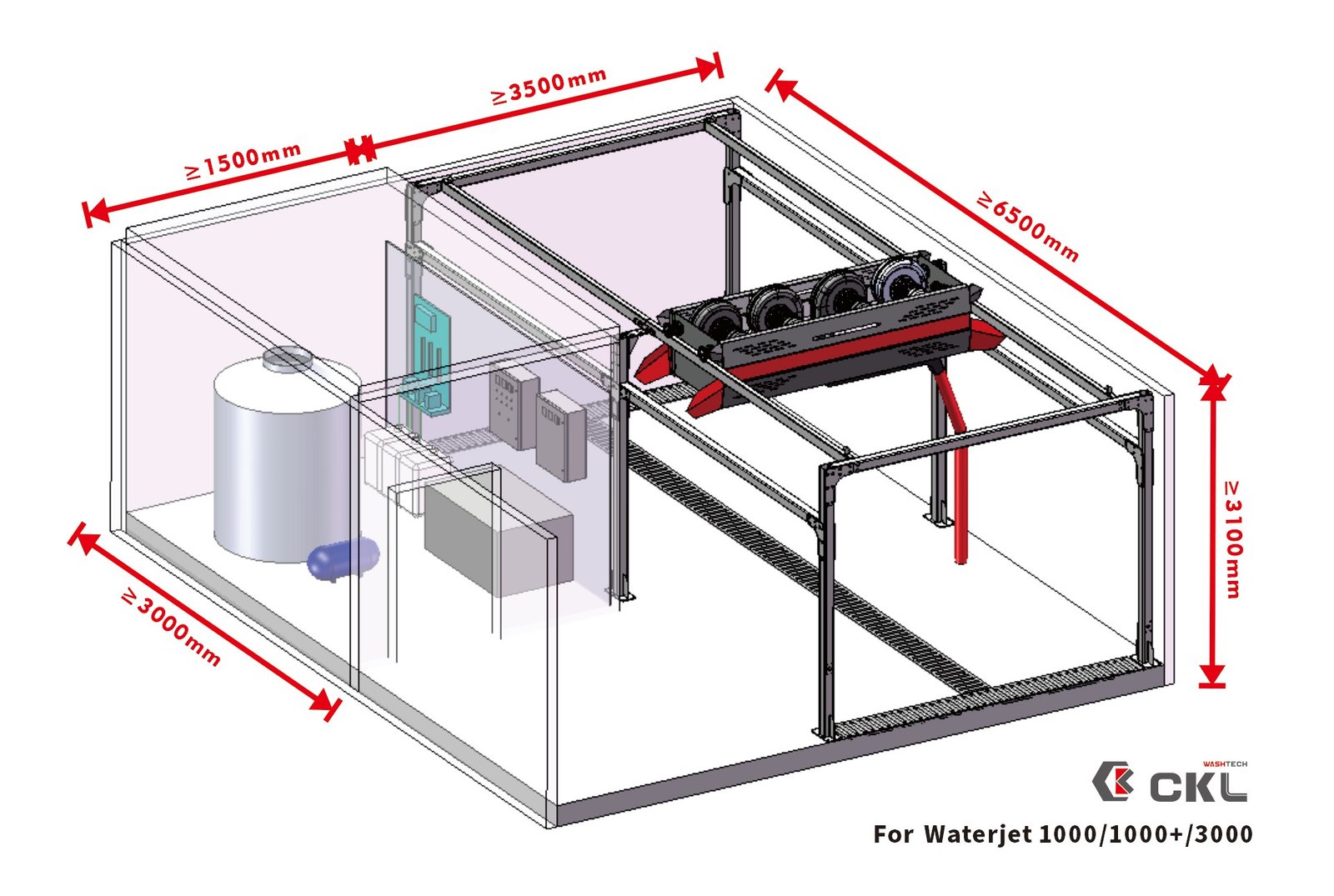

3. What size of cars is the machine able to wash and how much space does it require?
| Standard models | Place required | Available carwashing size |
|---|---|---|
| CKL waterjet 1000 | L7.5m*W3.5m*H3.1m | L5.6m*W2.6m*H2.05m |
| CKL waterjet 1000+ | L7.5m*W3.5m*H3.2m | L5.6m*W2.6m*H2.05m |
| CKL waterjet 3000 | L7.5m*W3.5m*H3.2m | L5.6m*W2.6m*H2.05m |
| CKL waterjet 3600 | L7.5m*W4.4m*H3.2m | L5.6m*W2.6m*H2.05m |
| CKL waterjet 3600 dual | L7.5m*W4.4m*H3.2m | L5.6m*W2.6m*H2.05m |
| CKL contour-following DF 360 | L9.0m*W4.2m*H3.2m | L5.6m*W2.1m*H2.05m |

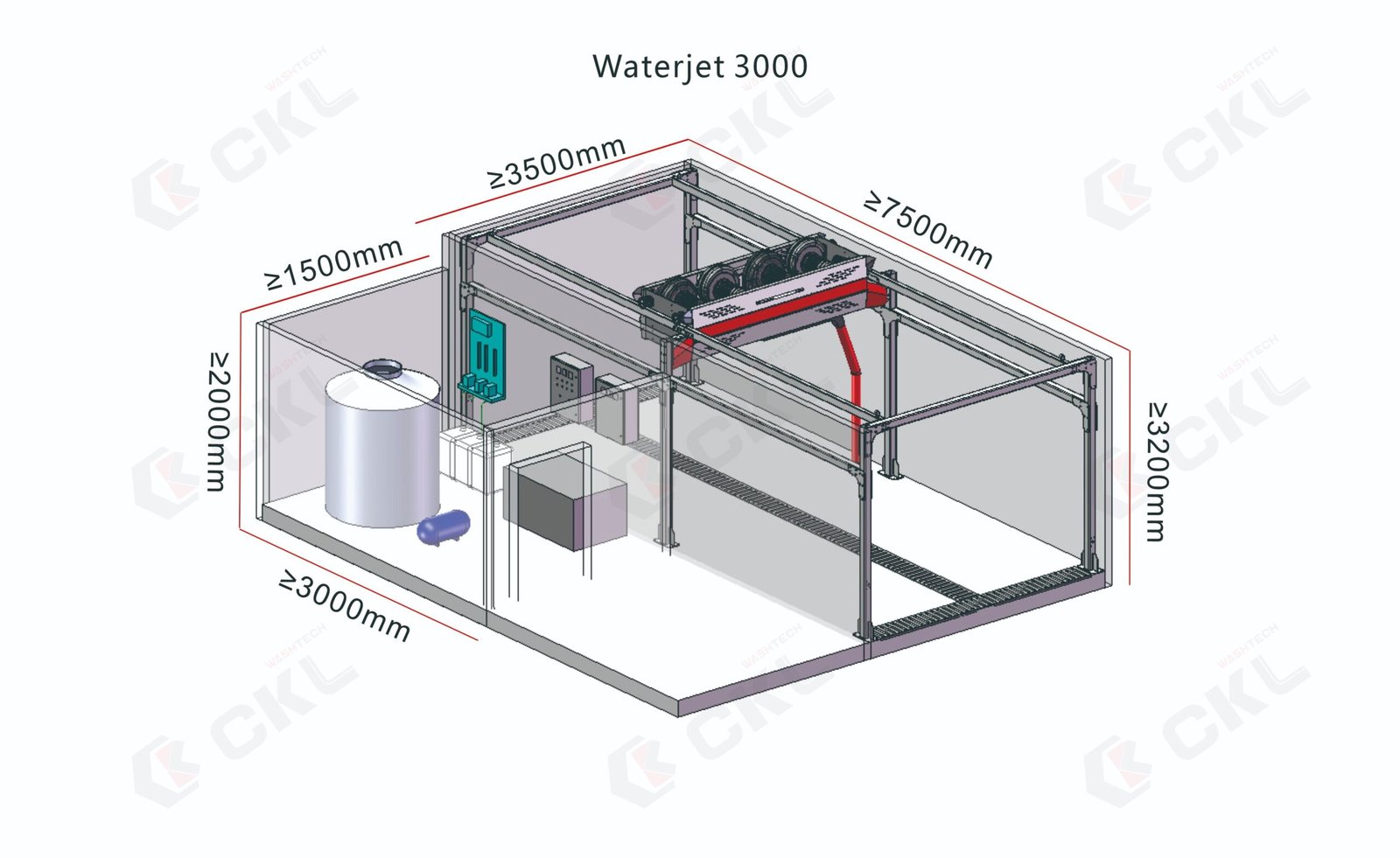

Mark: The workshop can be designed according to your actual situation. Customized model please consult our sales.
Car Wash Investment Profit Calculator
Input parameters to calculate revenue, net profit, ROI & payback period
| ITEMS | DETAILS | Formula Explanation & Calculation Step |
|---|---|---|
| Total Investment Amount | One-time total cost of equipment, decoration & licenseUser custom input value |
|
| Revenue per Single Wash | Standard charge for one regular car wash serviceUser custom input value |
|
| Daily Average Wash Volume | Average daily vehicles under stable operationUser custom input value |
|
| Monthly Operating Days | Actual business days excluding rest & maintenanceUser custom input value |
|
| Monthly Gross Revenue | $ 0 | = Revenue per Wash × Daily Volume × Monthly Days |
| Annual Gross Revenue | $ 0 | = Monthly Revenue × 12 |
| Monthly Rent | Monthly site rental costUser custom input value |
|
| Monthly Water & Electricity | Total monthly water, electricity & sewage feesUser custom input value |
|
| Monthly Consumables | Cost of shampoo, foam, towels & spare parts lossUser custom input value |
|
| Other Monthly Expenses | Equipment repair, marketing & miscellaneous feesUser custom input value |
|
| Total Annual Operating Cost | $ 0 | =(Rent + Utility + Material + Other) × 12 |
| Annual Net Profit | $ 0 | = Annual Revenue - Annual Operating CostPositive = Profit / Negative = Loss |
| Return on Investment (ROI) | 0% | = (Annual Net Profit ÷ Total Investment) × 100% |
| Payback Period (Months) | 0 | = (Total Investment ÷ Annual Net Profit) × 12∞ displayed if business runs at a loss |
User custom input value
User custom input value
User custom input value
User custom input value
= Revenue per Wash × Daily Volume × Monthly Days
= Monthly Revenue × 12
User custom input value
User custom input value
User custom input value
User custom input value
=(Rent + Utility + Material + Other) × 12
= Annual Revenue - Annual Operating Cost
Positive = Profit / Negative = Loss
= (Annual Net Profit ÷ Total Investment) × 100%
= (Total Investment ÷ Annual Net Profit) × 12
∞ displayed if business runs at a loss
Contact us
Whether you need product quotations, site layout plans, investment profit analysis or after-sales service, our team is ready to help you. Tell us your preferred model in advance, and we can assist you more efficiently.
